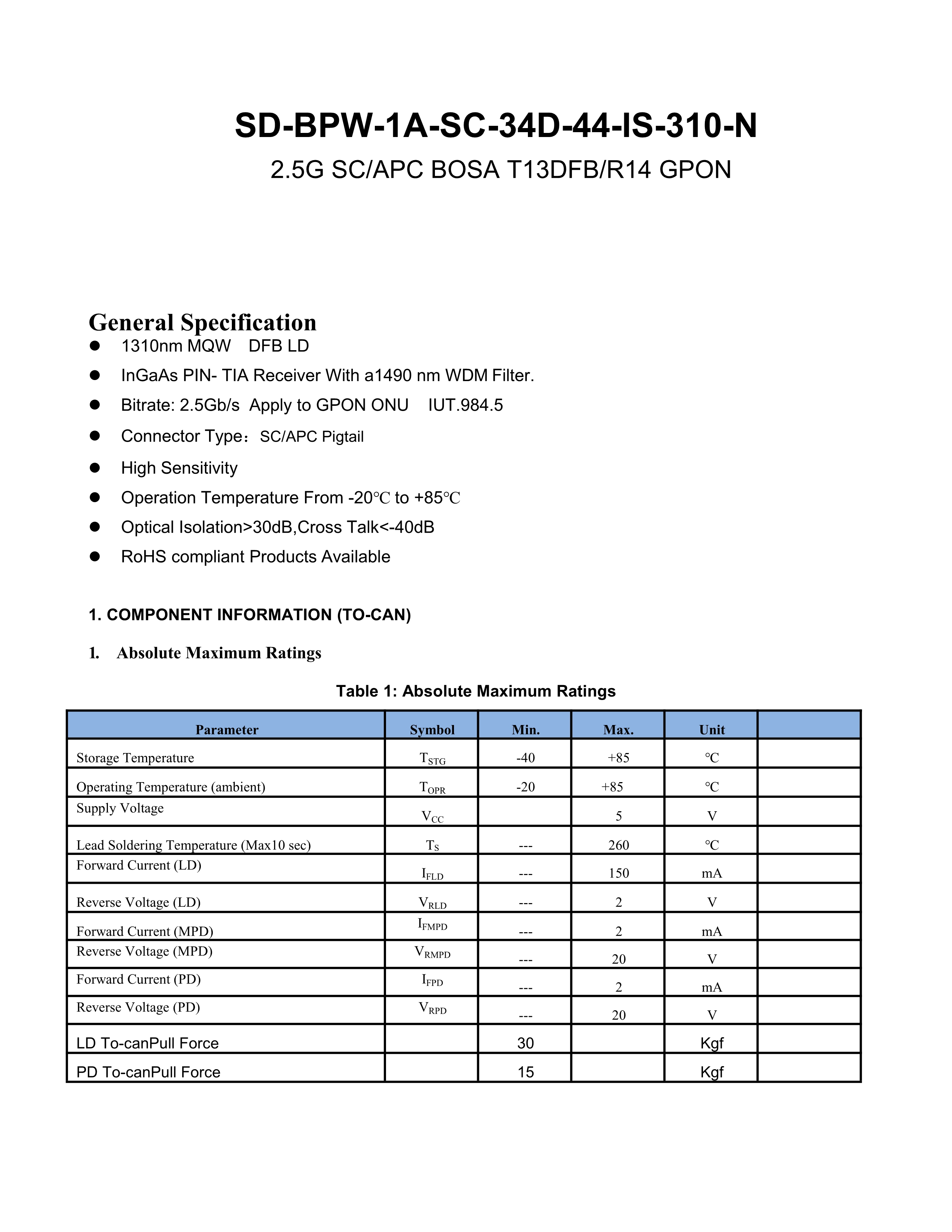

2.5G SC/APC BOSA T13DFB/R14 GPON SD-BPW-1A-SC-34D-44-IS-310-N

SD-BPW-1A-SC-34D-44-IS-310-N2.5G SC/APC BOSA T13DFB/R14 GPONGeneral Specification1310nm MQW DFB LDInGaAs PIN- TIA Receiver With a1490 nm WDM Filter.  Bitrate: 2.5Gb/s Apply to GPON ONU IUT.984.5Conne...

SD-BPW-1A-SC-34D-44-IS-310-N

2.5G SC/APC BOSA T13DFB/R14 GPON

General Specification

1310nm MQW DFB LD

InGaAs PIN- TIA Receiver With a1490 nm WDM Filter.  Bitrate: 2.5Gb/s Apply to GPON ONU IUT.984.5

Connector Type:SC/APC Pigtail

High Sensitivity

Operation Temperature From -20℃ to +85℃

Optical Isolation>30dB,Cross Talk<-40dB

RoHS compliant Products Available
